The Pneumatic Butterfly Valve is a crucial component in various industrial processes where precise flow control is necessary. As an efficient and reliable valve option, it is widely used in industries such as chemical processing, water treatment, HVAC systems, and more. This article explores the structure, working principle, applications, and benefits of pneumatic butterfly valves, providing a comprehensive understanding of their role in modern automation systems.

    What is a Pneumatic Butterfly Valve?

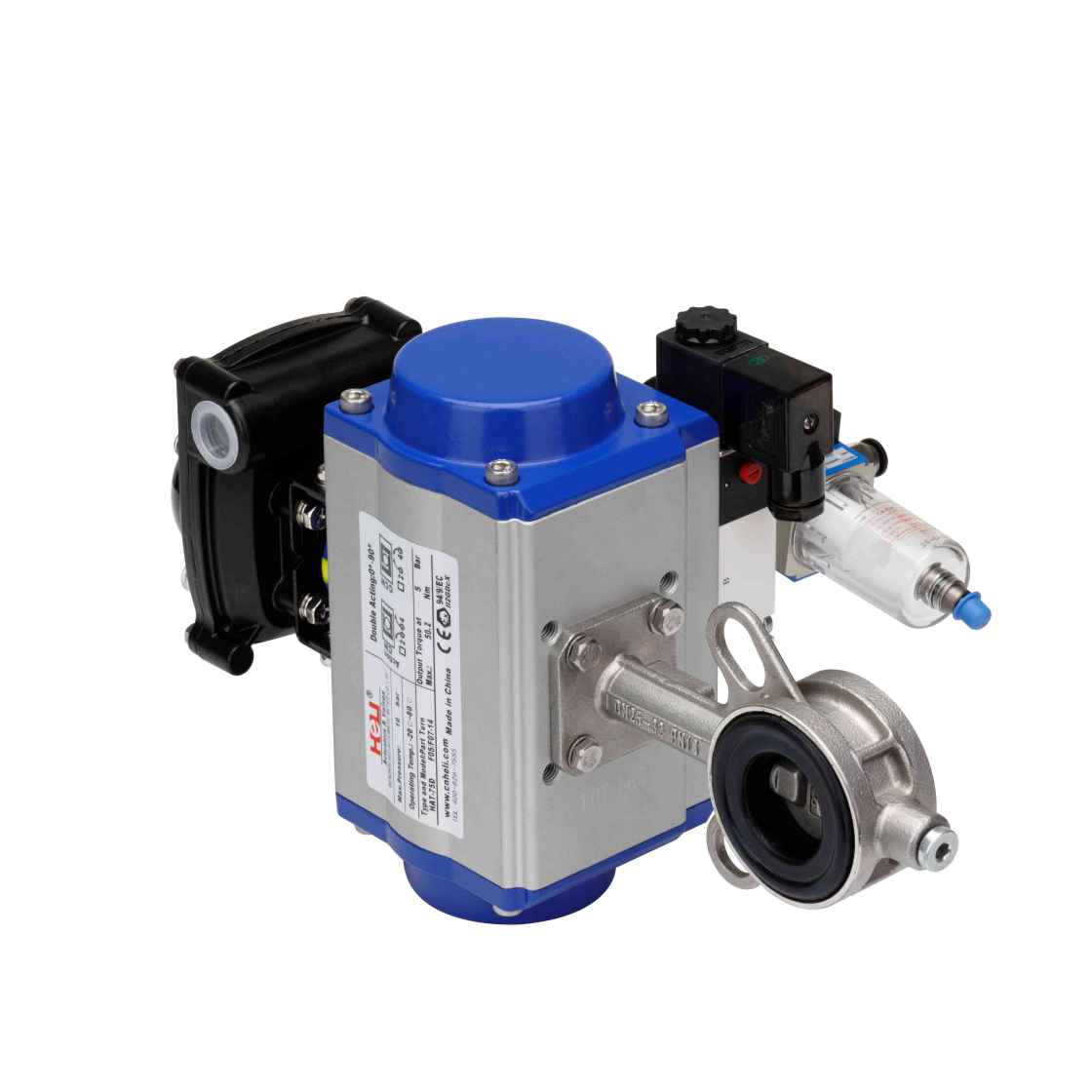

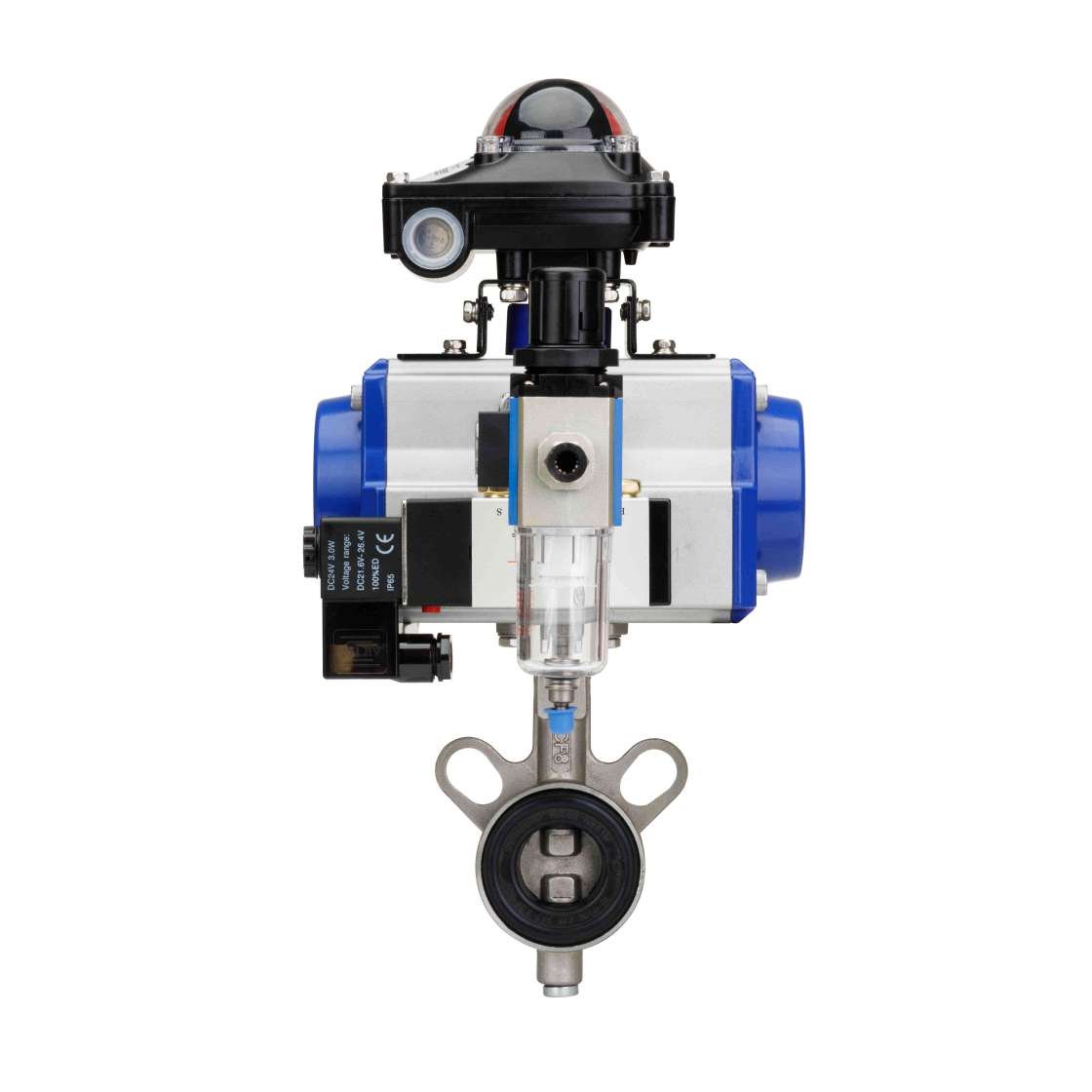

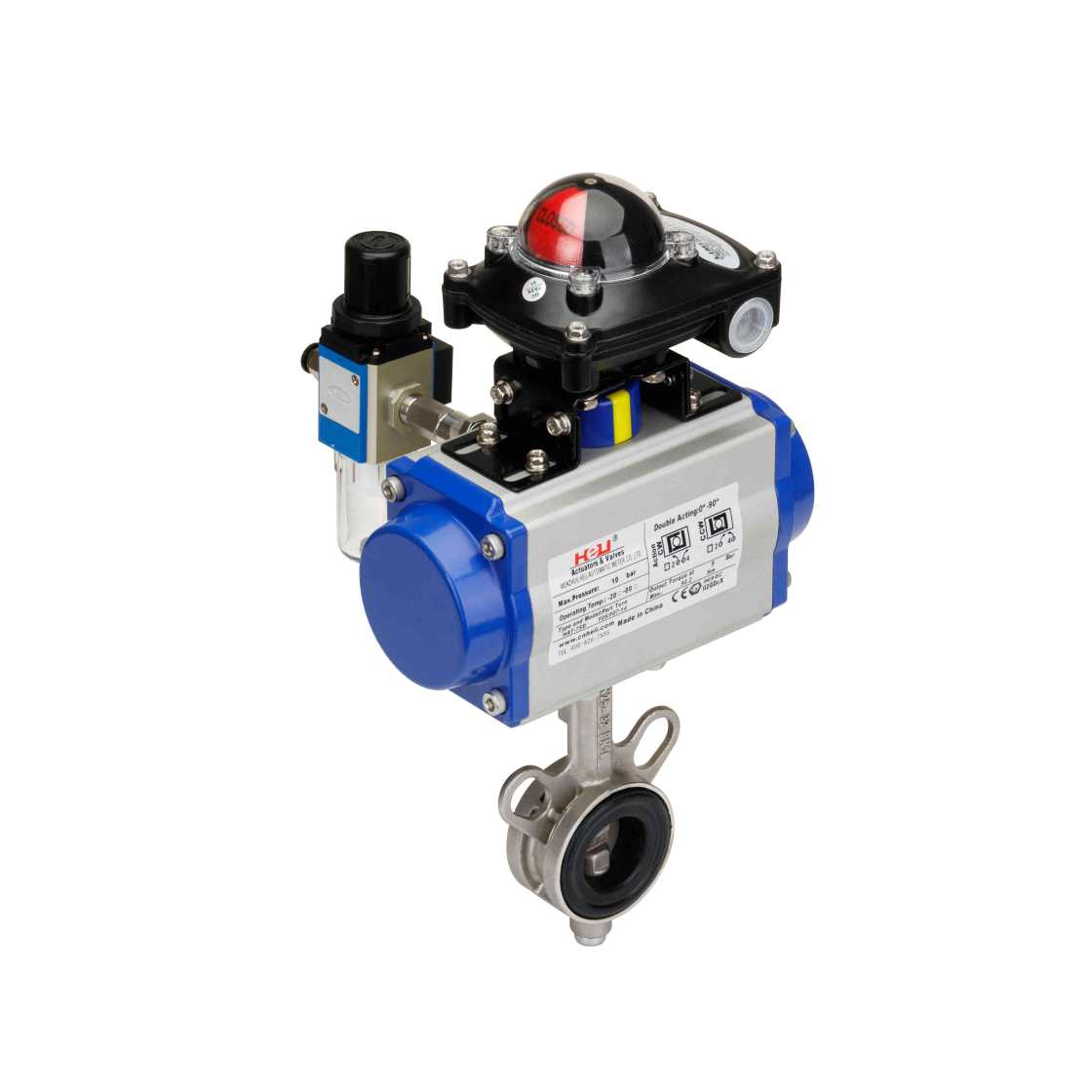

    A pneumatic butterfly valve is a type of valve that uses a rotating disc, or butterfly, to control the flow of a fluid through a pipe. It is powered by a pneumatic actuator, which uses compressed air to operate the valve, making it ideal for environments where remote or automated control is required. The valve features a compact design, with a disc that rotates around a central axis to either block or allow the flow of fluid.
